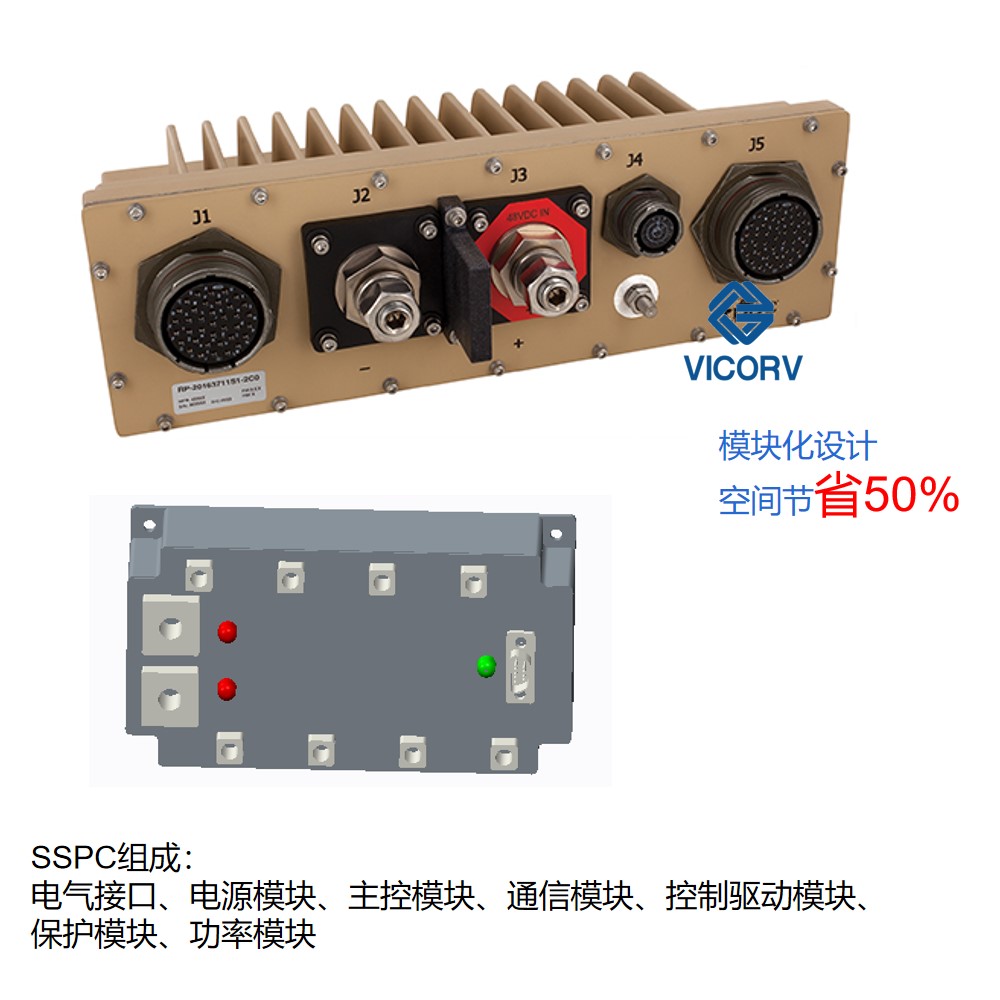

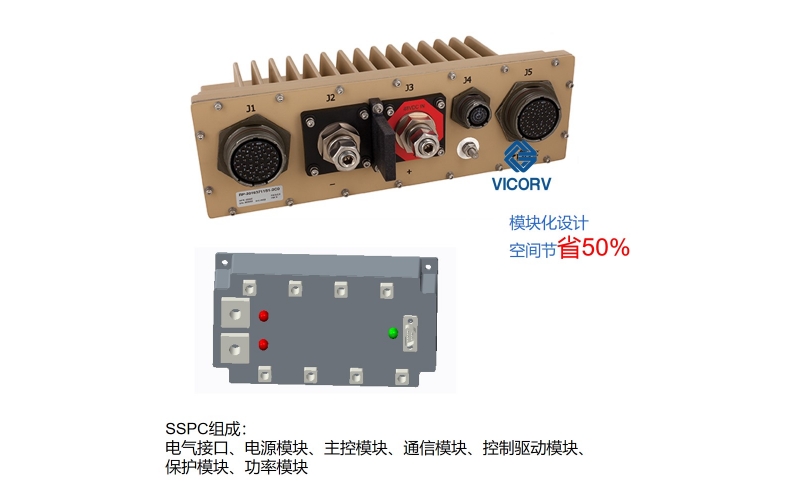

two70VThe series of solid-state power controllers is a directA module that allocates flow power and provides protection functions. This controller can receive diverse input control signals, including switch inputs, numbers, etcAccording to the bus, the solid power controller inside the module（SSPC）It can be controlled to turn on or off through the data bus. The working status of the module can be reported in real-time through the data bus. Widely applicable to aircraft, tanks, ships, andDistribution and management of power systems in measurement and control fields

External dimensions:100mm×160mm×two4mm

·Control input and output electrical isolation（≥two500Vd.c.）

·Maximum output loadeight0A

·AdoptingVIAT48Standard module structure

·ItwotnegativeloadOvercurrent protectionprotectandshortroadjumpgateprotectprotect

·carrySupplyMultiple numbersaccording tototalLine（1fifty-five3B，ARINC4twonine，RS485，RS422，CAN）

万彩网100线路Typical selection:

Load voltage detection, load current detection, and protection methods depend onI2tCurve,

Input voltage range:0～400VRated input voltage270Vd.c.,

Output current: 5A (12H),

Insulation resistance: ≥ 100MΩ，

Dielectric withstand voltage: ≥500Vr.m.s，

Output leakage current: ≤10μA

Control mode: bus（RS422，RS4eighty-five，CAN）The switch control is optional.
