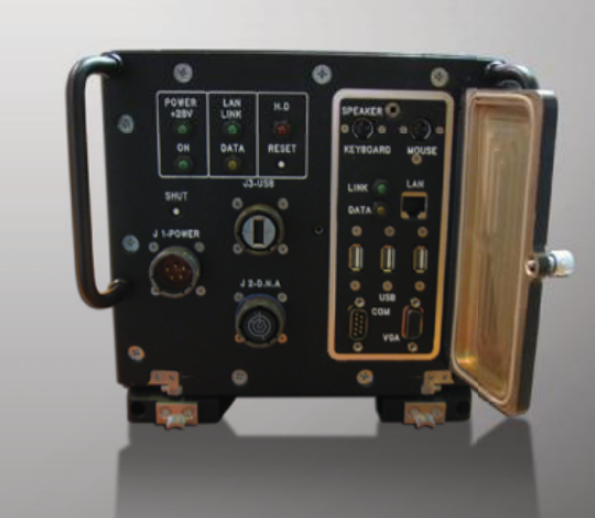

万彩网100线路Force air to move through the system board, power supply, and other system components. The moving air directly absorbs system heat from the board components and is then discharged from the casing to the surrounding environment. ATR accepts all 3U and 6U boards that comply with IEEE 1101.2. Through thermal analysis, the cooling concept of all convective cooling ATRs has been optimized. The chassis components are made of aluminum alloy # 6061-T651, and stronger applications may require the use of carbon fiber technology for shell design, greatly reducing weight, increasing strength, and enhancing thermal conductivity for thermal loads. All detachable covers are equipped with fixing screws.
万彩网100线路Compliant with the specifications of ARINC404A, ARINC600, and IEEE 1101.2
The working temperature range is -20 º C to+55 º C
万彩网100线路Meet the impact and vibration requirements of MIL-STD810E
万彩网100线路Operating altitude up to 15000 feet.
VME/64X, cPCI, PCI, VXS, VPX, and custom backplane options
万彩网100线路The combination of power supply and line filter has been optimized to meet MIL-STD461F MIL-STD-1275D/704/1399
Low weight, ideal for applications where weight is critical
万彩网100线路Equipped with a MIL38999 power connector and an integrated filter
Through thermal simulation research, for cooling design and optimization
万彩网100线路Fan function
Low noise control
Compliant with military specifications (MIL-STD-461F: EMIRFI, MIL-STD704A, 1275A: Transient and Spike, MIL-I-45208: Quality System)
High performance axial flow fan
万彩网100线路Feather edge, reduce noise
High reliability ball bearings
Scope of application: 80-350CFM
