What is a current transformer? It is a device used to measure alternating current, such as during power generation or transmission, which can convert the alternating current of different devices into the required current of tens to tens of thousands of amperes. It can not only monitor and measure the current size of these lines, but also avoid high voltage hazards.

When it comes to current transformers, I believe everyone is quite familiar with them. They mainly serve to protect the current. Not only can it control measuring instruments, but it can also avoid safety issues. However, many people are not very familiar with current transformers, so what is the function of current transformers? What are the precautions for using current transformers? Let's take a look together with these two questions!

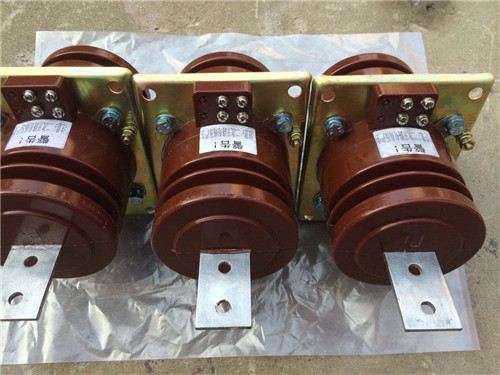

万彩网100线路What is the function of a current transformer

万彩网100线路A current transformer is a device used to measure alternating current, such as during power generation or transmission, which can convert the alternating current of different devices into the required current of tens to tens of thousands of amperes. It can not only monitor and measure the current of these lines, but also avoid high voltage hazards.

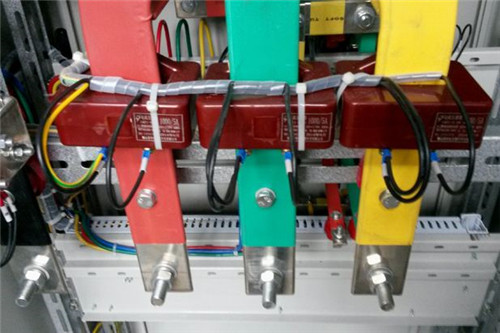

What are the precautions for using current transformers:

万彩网100线路1. Firstly, current transformers are identified based on polarity reduction. If the polarity connection is incorrect, it not only affects the current measurement value but also causes a short circuit in the circuit.

万彩网100线路2. Secondly, when using a current transformer, a grounding point should be set up in the secondary circuit and ensure good connection. Generally, it can be set at the terminal of the box to avoid insulation breakdown between windings and the formation of high voltage, which may harm personal safety. In addition, the secondary winding must not be open circuited, otherwise there may be overheating or high voltage hazards, which will not only burn out the winding but also endanger personal safety.

万彩网100线路3. When using a current transformer, it is necessary to check its rated current standard value. Failure to meet the standard range can cause the transformer to burn out. On the contrary, transformers with excessive current should not be selected, as this will affect their measurement accuracy. It is best to choose and use it based on specific circumstances. Before installation, it is advisable to learn more about its installation method and usage precautions to avoid accidents.

The above is Wei Kewei's summary of the role of current transformers. If you are interested inCurrent transformerIf you have any other questions, you can directly contact customer service. I talked about the function of current transformers, you can take a lookWhat are the specifications of current transformers？
