CCT Transformer TDK In situ Replacement Aviation Quality - [Vekwei]

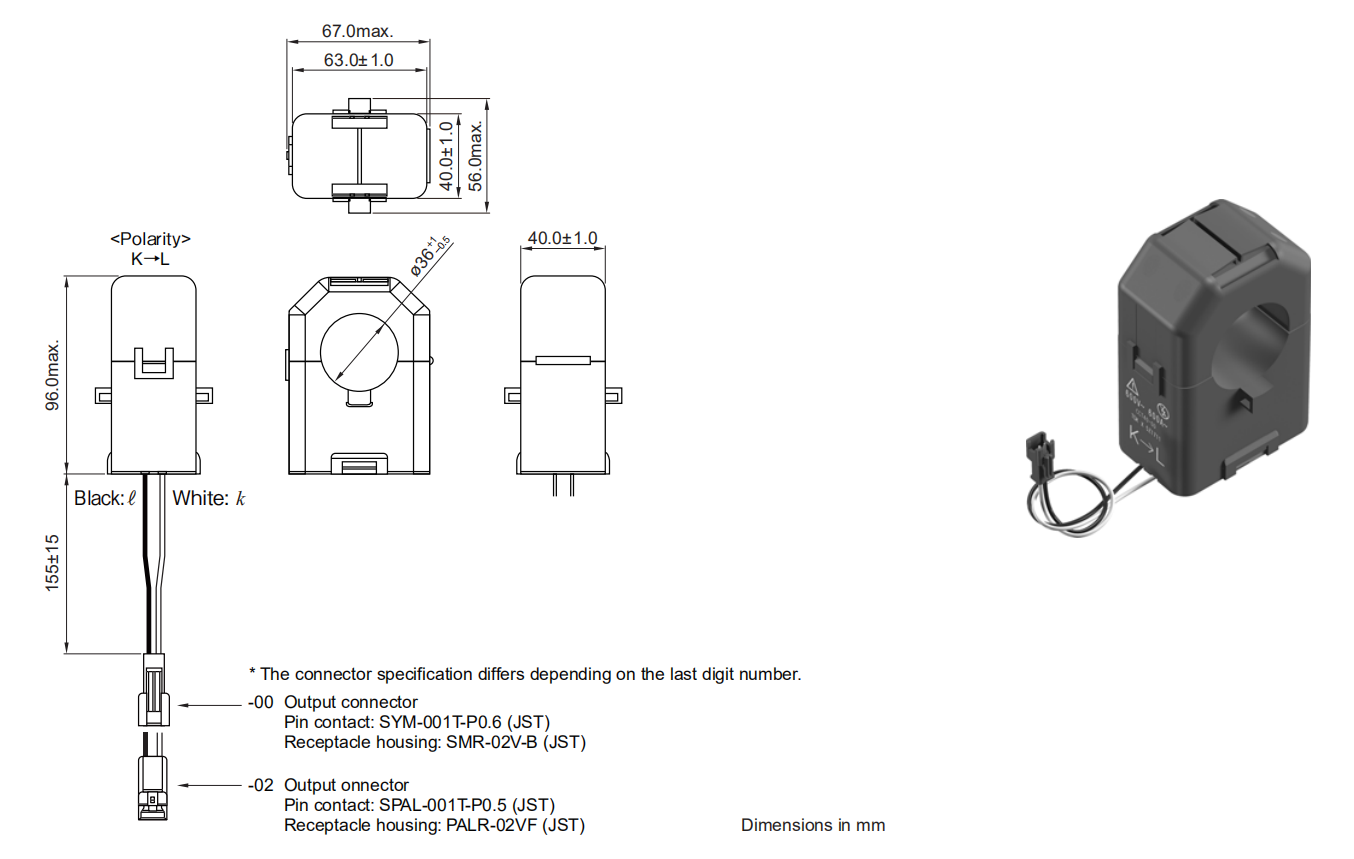

CCT406393CCT TransformerTDK
This type of current sensor adopts a clip on installation method, which is convenient for installation on existing power equipment. Provide high-quality automatic winding and wire winding. Built in circuit breaker protection device. The product complies with the RoHS directive
万彩网100线路This type of product is suitable for energy management systems such as HEMS, BEMS, FEMS, CEMS
| Product model | CCT406393-600-36-00 | CCT406393-600-36-02 |
万彩网100线路Impressed current | AC 1.0 to 600Arms (50/60Hz) | AC 1.0 to 600Arms (50/60Hz) |
| Maximum allowable current | AC 700Arms | AC 700Arms |
| Inner clamp section diameter | 36mm | 36mm |
| Nominal current ratio | 3000:1 | 3000:1 |
| Output current accuracy | 200.0mA±1% (600A, 50/60Hz) | 200.0mA±1% (600A, 50/60Hz) |
| phase difference | 0.35°±0.2°(10Ω, 600A, 50/60Hz) | 0.35°±0.2°(10Ω, 600A, 50/60Hz) |
| Secondary winding resistance | sixty-fourΩ | 64Ω |
| Open circuit protection | 7.5V | 7.5V |
| Output connector pin contacts | SYM-001T-P0.6 (JST)/SMR-02V-B (JST) | SYM-001T-P0.5 (JST)/SMR-02F (JST) |
| Adaptive connector socket/plug | SHF-001T-0.8BS (JST)/SMP-02V (JST) | SHF-001T-0.5BS (JST)/SMP-02F (JST) |
| Output lead | AWG22 155mm | AWG22 155mm |
| Allow desorption times | one hundred | one hundred |
| Voltage resistance | AC2200V, 1min. | AC2200V, 1min. |
| insulation resistance | ≥100MΩ | ≥100MΩ |
| Flame retardant grade | UL94 | UL94 |
We can provide you with a complete set of technical information and free domestic replacement work. Please contact the electrical engineer if needed.
