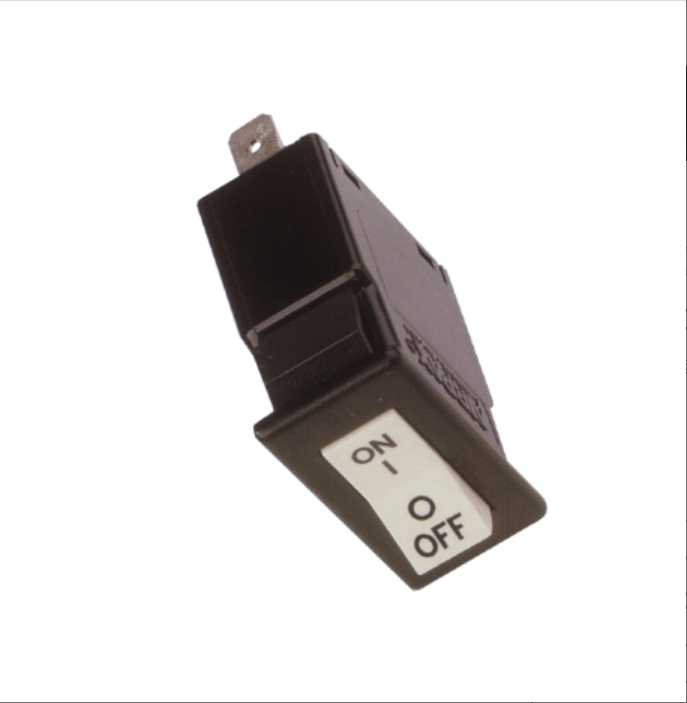

What are the SNAPAK series circuit breakers? This can be explained from the following aspects:

A: When specified for 120Vac and 250Vac operation, a neon light bulb will be provided. To operate at 120Vac, a 33000 ohm, 1/2 watt external resistor is required. At 250Vac, an external resistance of 100000 ohms and 1 watt is required.

万彩网100线路B: There is a 750 foot L @ 20mA LED installed in the center of the handle. The maximum power consumption at 25 degrees Celsius is 180mW. The continuous forward current is 40mA. The typical forward voltage is 1.6V when it is 20mA. Usually, when the reverse current is 3.0 volts, it is 100mA. External resistors may be required to limit the current to these values.

万彩网100线路C: When ordering paddle shaped handles, if needed, you can select an item from each hardware group to add to the 5th decision. For example, "-11ALS" represents a shiny nickel knurled nut, vertically mounted indicator, locking ring, and # 6-32 screw terminal adapter. For the "push-pull", "rocker", and "one key reset" versions, you can only add the # 6-32 screw terminal adapter (- S).

万彩网100线路D: Except for the Rocker unit, all units will have (1) hex nuts installed as standard hardware on the back of the panel. The selection in the fifth decision table applies to the front or visible side of the panel and is only applicable to the propeller handle configuration. The push-pull and reset configurations include one (1) panel nut and one (1) hex nut as standard hardware.

万彩网100线路E: For mixed construction, please consult the factory or sales representative for part numbers.

F: Only switch - does not provide current overload protection.

万彩网100线路Weikewei provides you with a domestic alternative upgrade solution for SNAPAK circuit breakers. Please contact Weikewei engineers if needed. Li Gong: 18576410868
