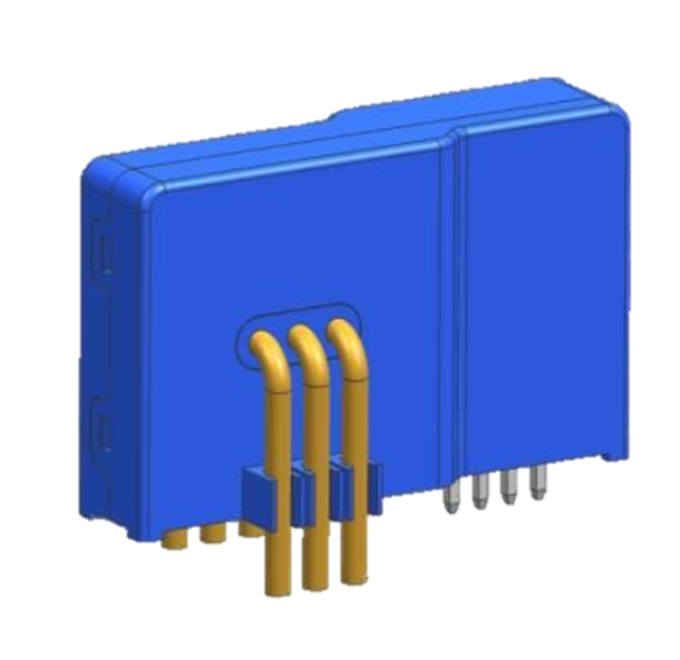

LAS series current sensor LAS 50-TP I=50 A, used for electronic measurement of current: DC, AC, pulse, with P-N current isolation between primary and secondary circuits.

万彩网100线路mechanical properties

General tolerance ± 0.2 millimeters

万彩网100线路·Primary side fastening connection 1.4 x 1 mm

Recommended PCB hole 2mm

·Fasteners and standard parts 0.6 mm

·Recommended PCB hole 1.2mm

万彩网100线路When flowing from terminal "IN" to the terminal, the temperature of the positive primary wire should not exceed 100 degrees Celsius· Sensors must be installed unless otherwise specified in the VICORV data sheet according to the general installation rules for sensors. Please refer to document NOANEI 20504, which can be found on our website: Products/Product Documentation. This is the standard model. For different versions (supply voltage, turns ratio, unidirectional measurement), please contact us.
